Empulse R10 Wheelchair Power-Assist Device
- Compatible with most folding & tilt-in-space manual wheelchairs.
- Only folding power assist device on the wheelchair market
Empulse R10 Wheelchair Power-Assist Device
With the new Empulse R10 power-assist device, it has never been so easy to support the attendant pushing the wheelchair.
Whether uphill, downhill, or on long trips, the R10 helps in every situation while having zero detrimental impact when self-propelling. This foldable and lightweight power-assist device is easily transported, either attached or detached from the wheelchair with its handy backpack.
Key Features:

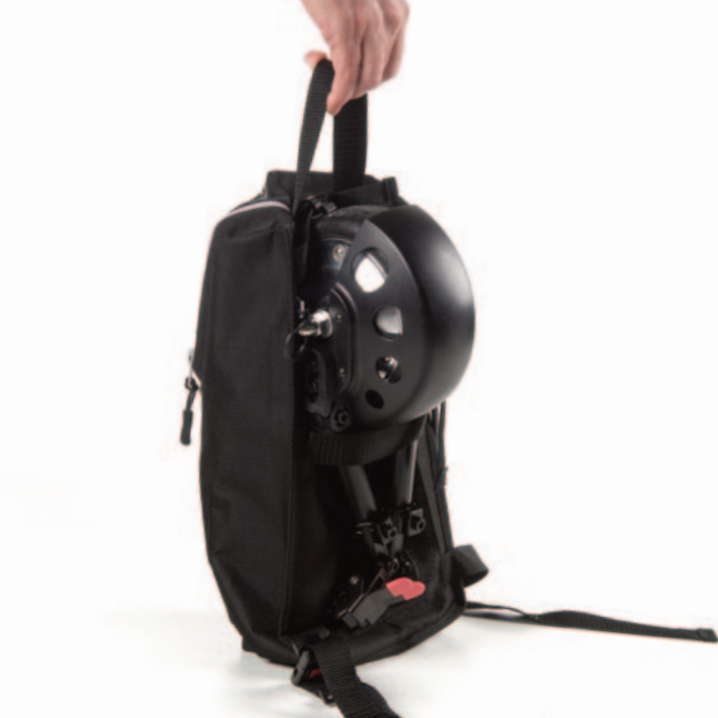

Convenient Carry Bag:
Compact and easy to carry or store.

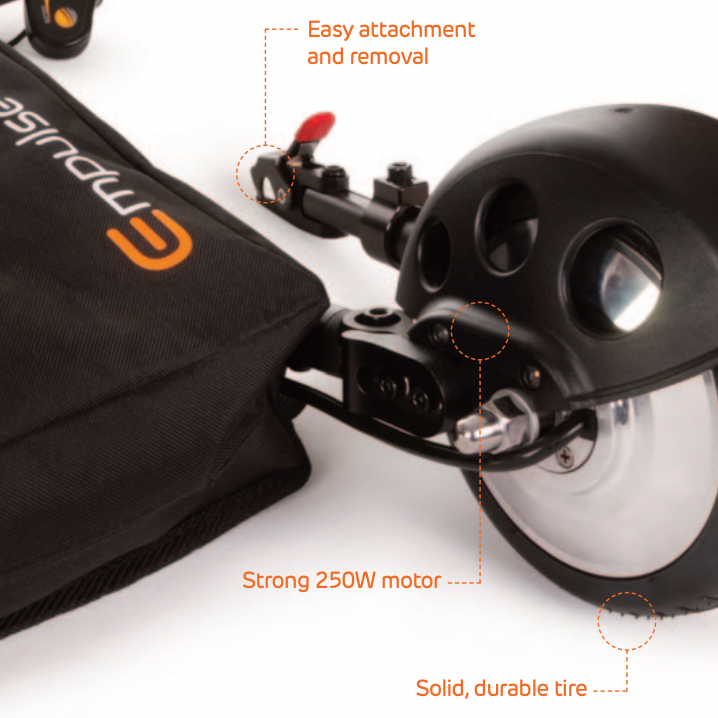

Simple Attachment and Removal:
Attaches easily to brackets mounted on the frame.
Simple Control:
Thumb throttle and three push-button speed settings.
Convenient Folding:
The only power assist on the market that can be folded while still connected to the wheelchair.
Performance:
No compromise on performance. The R10 achieves a 12 km range, climbs up to 8° slopes, and handles a max user weight of 130 kg.

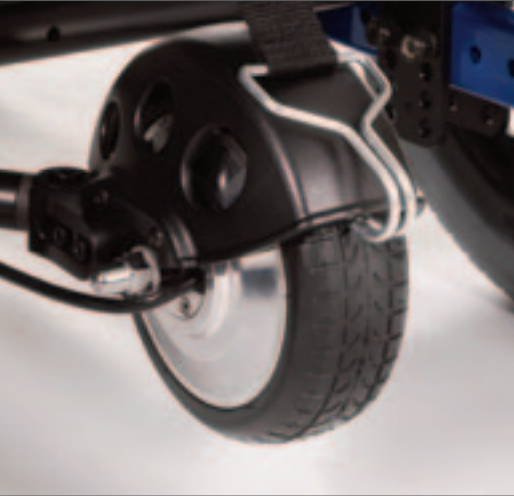

Lift Hook:
Lift hook supports the wheel off the ground when not in use or during transport.
Easy handling
Despite the R10's lightweight and compact design, there is no compromise in performance. The R10 achieves a 12 km range, climbs up to 8° slopes, and handles a max user weight of 130 kg.
The Empulse R10 design provides easy operation as well as fast docking & undocking. It can also remain on the chair when folded. The R10 power-assist device offers a free-run mode, allowing self-propelling without detaching the device, allowing the highest level of independence.

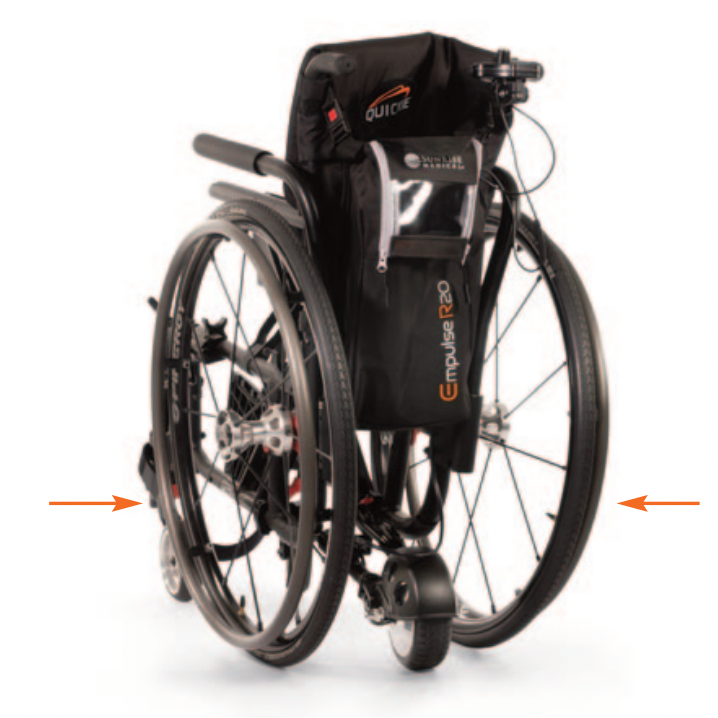

Smooth transport and folding ability

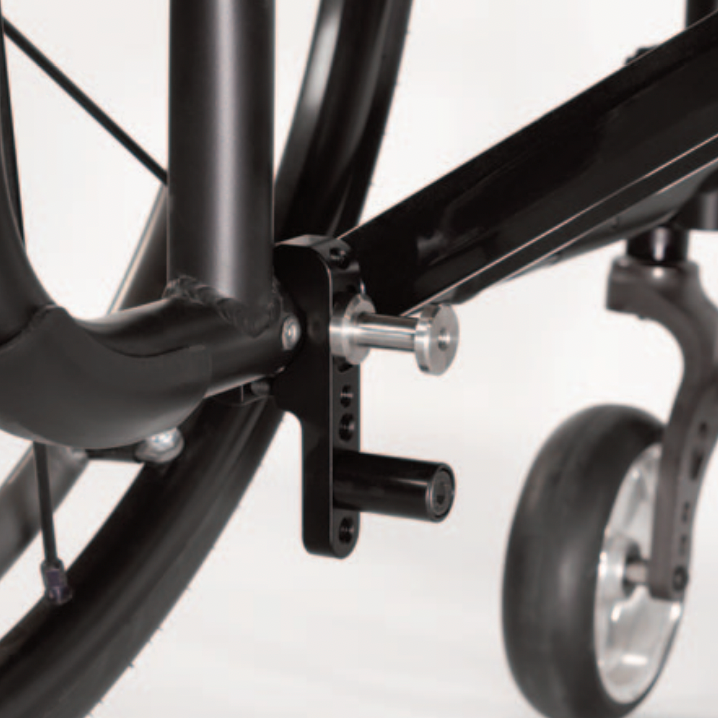

The Empulse R10 is the only foldable power-assist device available. It can be transported easily whether it's attached to the wheelchair or not, thanks to its lightweight and folding design. It’s ideal for everyday use and travel. The click-fix docking system makes attachment simple and tool-free, with only a small docking pin left on the chair to keep things lightweight.
Compatible with almost all common manual wheelchairs with the following dimensions:
- Box frame or similar frame type with round tubes diameter: 20 - 28 mm.
- Seat width: 380 - 520 mm
- Rear seat height: 400 - 580 mm
- Height between the box frame and the ground:180 - 220mm

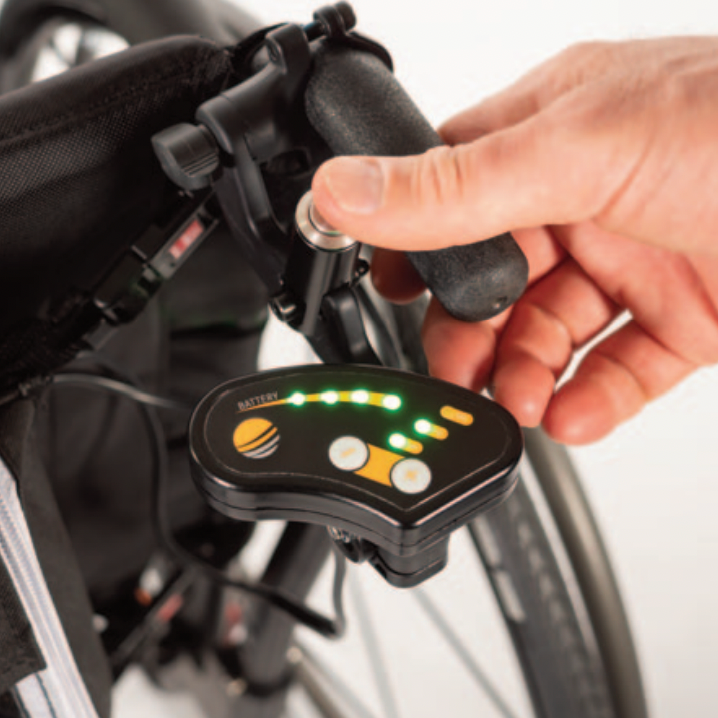

Simple operation
The R10 features a one-button control unit for easy and safe use. Users can switch between three speed settings (1.2, 2.3, and 3.1 mph). The control unit’s position is adjustable for comfort and accessibility, and it includes a quick-release feature for easy removal without unplugging the cable.
| Empulse R10 Wheelchair Power-Assist | |
|---|---|
| Speed Settings | 1.5 km/h, 3 km/h, 4.5 km/h |
| Batteries | 36V, 5Ah Li-Ion |
| Maximum Safe Slope | 8° |
| Weight of Heaviest Part | 3.7 kg |
| Total Weight | 6.9 kg |
| Maximum User Weight | 130 kg |
