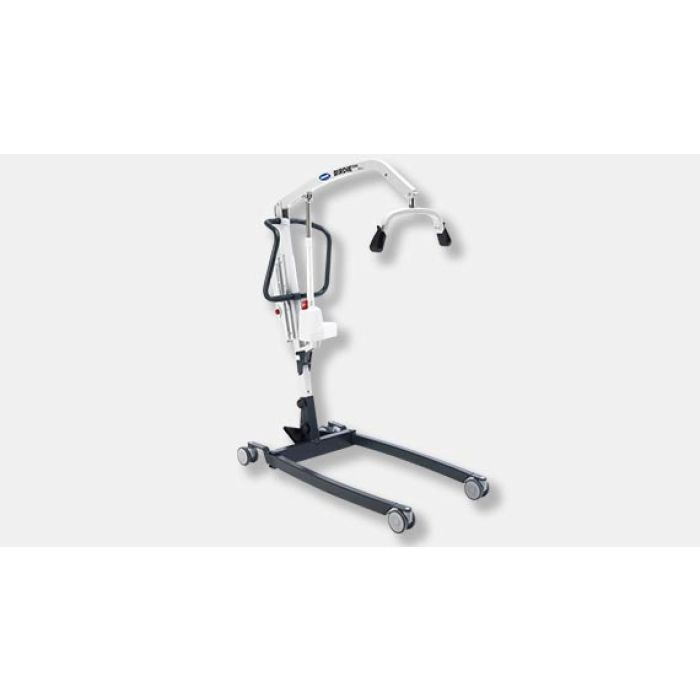

Invacare Birdie EVO Mobile Hoist - Compact
The new Birdie EVO has been designed to offer a high feature-set of options that have been blended with new technologies to provide maximum comfort and security when lifting or transferring a patient to or from a bed, chair or even the floor.
Based on the renowned Birdie, the new range has been customer insight led, encompassing everything that was valued on the Birdie whilst bringing in new features to further enhance the client and carerexperience.
The BirdieEVO encompasses an ergonomic lift that allows the client to be easily rotated 360°, making positioning much easier for the carer and reducing anxiety for the client.
The high boom ensures there is space for the client, even when the hoist is in its highest position, and the optimised space in front of the actuator reduces the risk of injury to the client’s knees.
The new Birdie Evo has been designed a high feature-set of options with new technologies to provide maximum comfort and security when lifting or transferring a patient to or from a bed, chair or even the floor.
- The Birdie Evo can be folded and unfolded easily without the need for tools.
- Lightweight 31kg making it easy to transport and store.
- 150kg max user weight.
Key features
- Impressive lifting range - ergonomic lift that enables the patient to be easily rotated 360º making positioning much easier.
- Maximised space for the client - optimised space in front of actuator reduces injury to the knees.
- Lightweight and easy to fold for transportation and storage.
- Smartlock quick release mechanism allows you to change the spreader bar quicker and more safely - no tools required.
- User friendly hook design so you can easily attach slings by hand.
- Integrated dampener greatly reduces rocking movement.
- Ergonomic push bar handles make manoeuvring easier.
- Distinct curved design allows carer to maintain eye contact with the client during the transfer.
| Birdie EVO | Birdie EVO Compact | Birdie EVO Plus | |
| Maximum Reach: | 63cm | 53cm | 63cm |
| Base Length: | 120cm | 106cm | 123.5cm |
| Total Length: | 125cm | 110cm | 125.5cm |
| Boom Height: | 63 to 187cms | 73 to 180cms | 64.5 to 182cmcm |
| Total Internal Width (base closed/open): | 46cm / 89cm | ||
| Base Height / Under Bed Clearance: | 11.5cm | ||
| Lifting range (from sling attach point): | 53 to 100cm | ||
| Turning Radius: | 170cm | ||
| Castors Dual: | 10cm | ||
| Electric Emergency Lowering: | Yes | ||
| Total Weight: | 36kg | ||
| Weight of Heaviest part (base): | 16.5kg | ||
| Weight Capacity: | 150kg | ||
| Warranty: | 3 Years |
Lifting range (g) 1240 1240 1060 1060 1240 Min. height at Sling Hook-up (hmin) 400 415 515 530 415 Max. height at Sling Hook-up (hmax) 1645 1660 1575 1590 1660 Total width (legs open) centre to centre of castor 1100 1100 890 890 1100 Total width (legs open) internal measure (j) 1040 1020 835 815 1020 Total width (legs closed), external measure 640 640 520 520 640 Min. internal width (i) 495 495 380 380 495 1650023-B 25
