Oxford Up 200 Manual Stand-Aid and Transfer Device
- Encourages user participation and rehabilitation
- Tool-free disassembly into 3 parts for storage and travel
- Designed with key moving and handling principles in mind

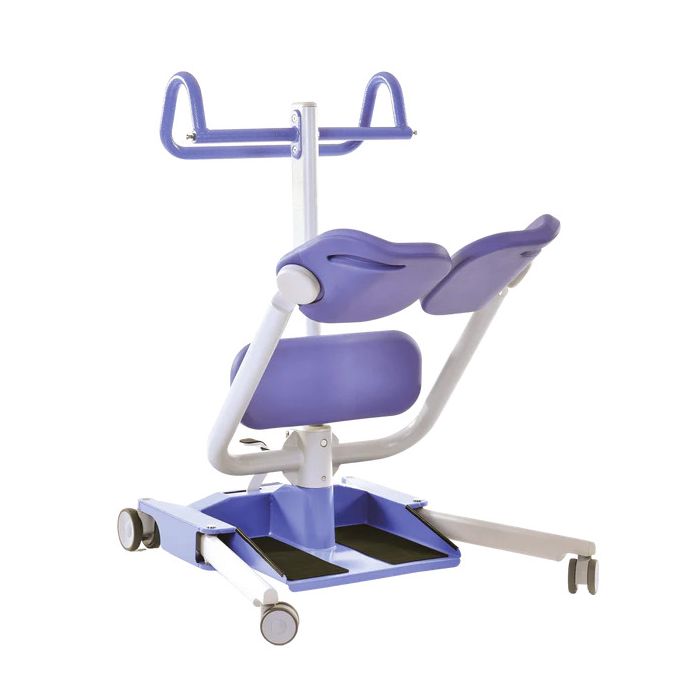

Oxford Up 200
The Oxford Up stands out as a uniquely designed manual stand-aid and transfer device, crafted to cater to individuals requiring support when standing, while also fostering their active participation in the process. It goes beyond mere assistance by encouraging users to contribute effort, thus promoting rehabilitation, function, and independence.
This innovative device boasts a user-centric design that prioritizes convenience and versatility. With its ability to be swiftly disassembled into three components, storage and transportation become effortless tasks, making it an ideal choice for users on the go. Its compact size when disassembled ensures compatibility with the trunk space of most family vehicles, enhancing its mobility and accessibility.
The Oxford adheres closely to the five key principles of moving and handling:
- Get Close to the Load
- Use a Wide Stable Base
- Ensure a Comfortable Firm Grasp
- Keep Spine Close to Neutral
- Make Sure Movement is Smooth
This commitment to excellence provides users and caregivers with peace of mind, knowing that they can rely on the Oxford Up for dependable support and assistance.
Key Features:
- Safe Working Load 200kg / 440lbs
- Disassembles for easy storage and transportation
- Adjustable legs for access around furniture
- Contoured swing-away seat pads
- Ergonomic design considerations
- Compatible sling offer for additional support
| Oxford Up 200 | 1 | ||
| Safe Working Load | 200kg | ||
| Overall Height (A) | 1093mm | ||
| Overall Length (B) | 960mm | ||
| Overall Width (C) | 633mm | ||
| Legs Open - External Width (D) | 840mm | ||
| Legs Open - Internal Width | 720mm | ||
| Legs Closed - External Width (E) | 585mm | ||
| Legs Closed - Internal Width | 470mm | ||
| Leg Height | 105mm | ||
| Knee Pad Height (Footplate to top of pad) | 480mm | ||
| Foot Plate Height | 37mm | ||
| Ground Clearance | 17mm | ||
| Turning Radius | 1100mm | ||
| Front Castors | 75mm | ||
| Rear Castors (Braked) | 100mm | ||
| Intended Operating Environment | +5°C to 40°C | ||
| Weight - Base | 20kg | ||
| Weight - Seat Support Tubes | 9.5kg | ||
| Weight - Mast | 4.5kg | ||
| Total Weight | 34kg | ||
