RazBari Bariatric Attendant Tilt Commode Chair
- Supports weight capacities from 136 to 272 kg.
- 5 different widths.
RaziBari Bariatric Attendant Tilt Commode Chair

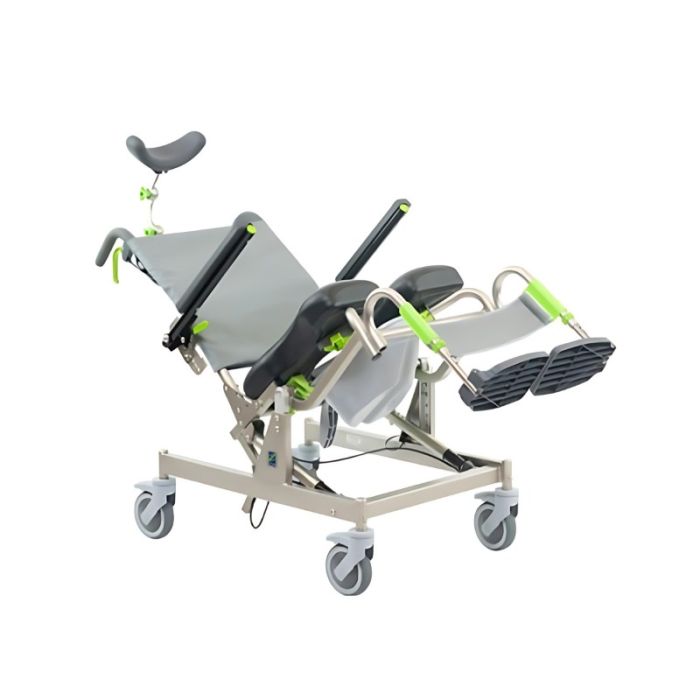

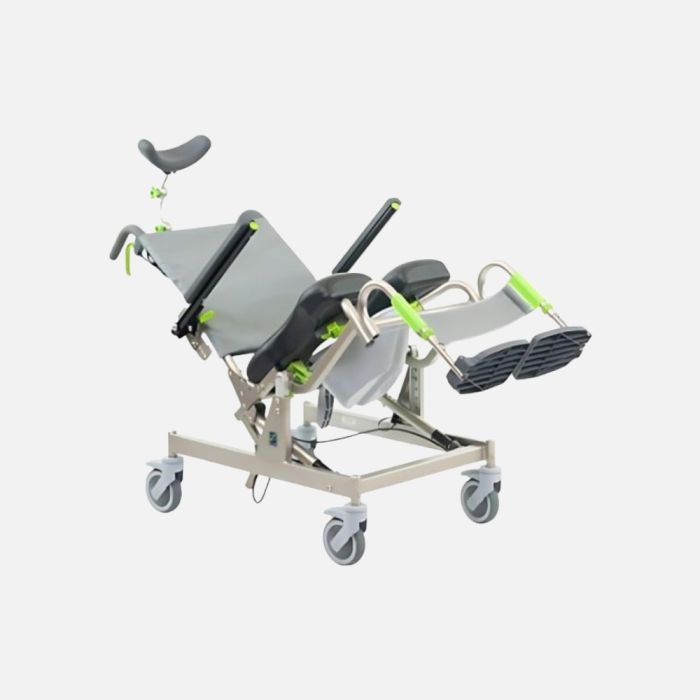

The Raz-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the Raz-AT one of the easiest tilting mobile shower chairs to operate.
Key Benefits:
- User Weight Capacity: The Raz-AT600 Heavy Duty model supports weight capacities from 136 to 272 kgs, featuring a durable stainless steel frame, a 25° tilt range, four locking 6” casters, and a commode pan.
- Weight Assist Spring System: offers adjustable tilt operation tailored to user weight and Center of Mass, accompanied by essential features like a headrest pad, Tilt Assist Pedal, and HD Footrests (Z709N). Choose Raz for quality care and comfort in every use.
Key Features:

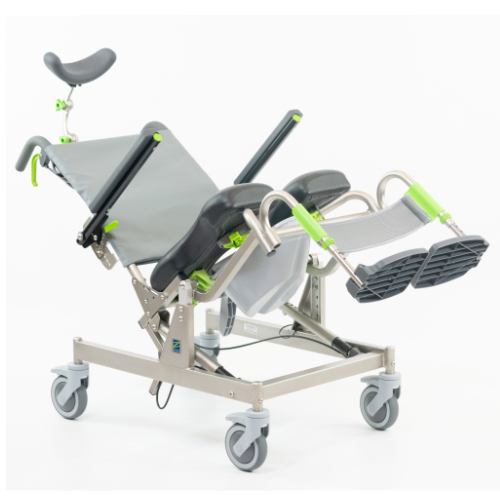

Tilt function
Seat frame tilts for additional pressure reduction. The pneumatic springs provide infinite adjustment up to 40°, and pressurised springs also help lift seat frame to an upright position.

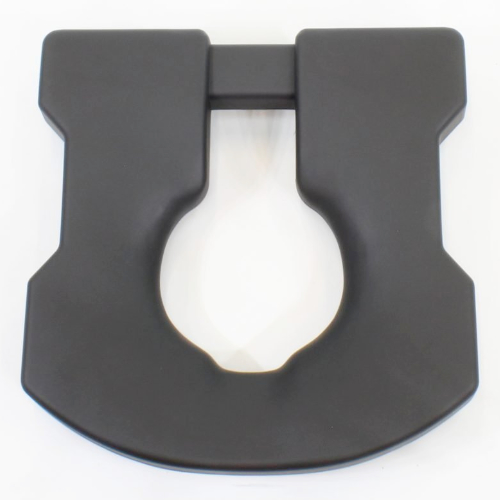

Moulded seat
The moulded seat is contoured for pressure reduction and pelvic stability. The soft integral-skin foam offers comfort and durability, and the seat is available with open or bridged front.

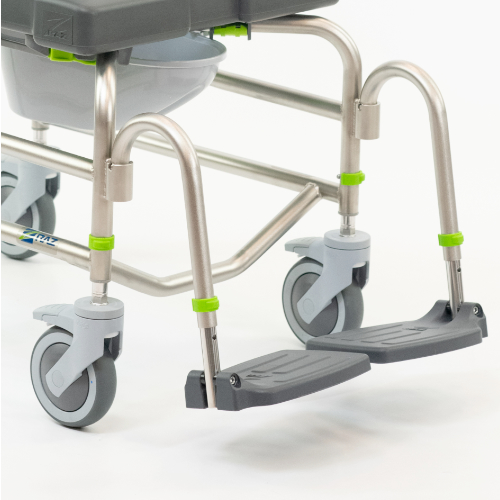

Adjustable footplates
The footrests are removable for transfers and cleaning. The footrests swing in and out easily and the flip-up footplate moves easily out of the way when needed.

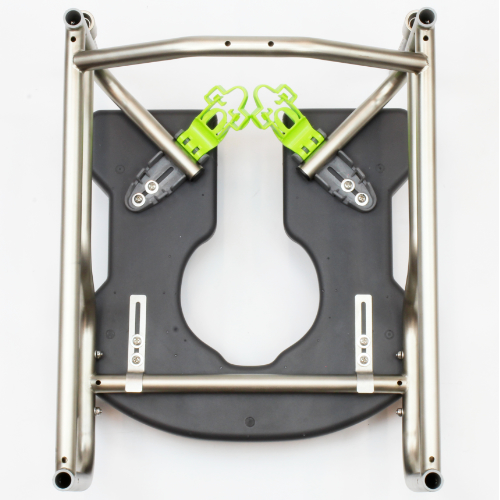

Ischial Pelvic Alignment System
The Ischial Pelvic Alignment System provides 5cm of fore/aft adjustment so the seat can be aligned with the pelvis.

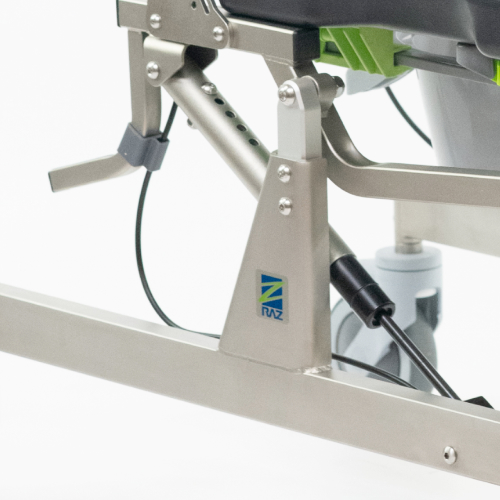

Adjustable pivot posts
The adjustable pivot posts provides 10cm of seat height adjustment without frame / toilet bowl interference.

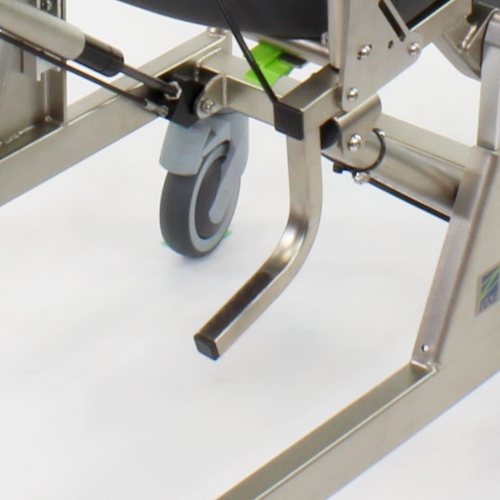

Tilt assist pedal
The tilt assist pedal helps an attendant initiate tilt for heavier users or users with a forward weight distribution.
| Heavy Duty Commode Chair | Large |
| Weight Capacity | 272 kg |
| Frame Width (seat and back frame) | 56 cm |
| Seat Width (commode seat) | 56 – 76 cm |
| Seat Depth (front of back post to front of seat) | 46 cm |
| Overall Width (with standard armpad) | Seat frame width + 11 cm |
| Overall Length with Z709 Footrests | 96 – 99 cm |
| Clearance Height Under Seat | With pan brackets: 43 – 48.5 cm Without pan brackets: 47.5 – 50 cm |
| Armrest Height Above Seat | 24 cm |
| Seat-to-Floor Height | 55 cm and 58 cm |
| Product Weight | 5” casters: 37 kg 6” casters: 38 kg |
