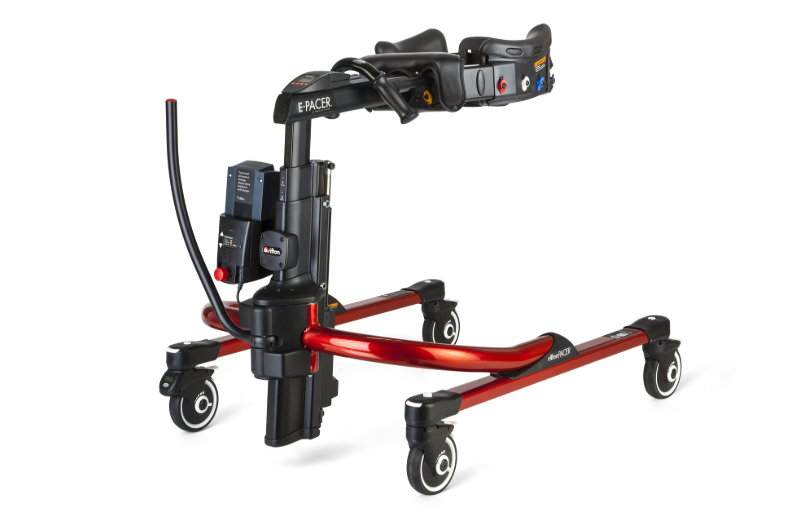

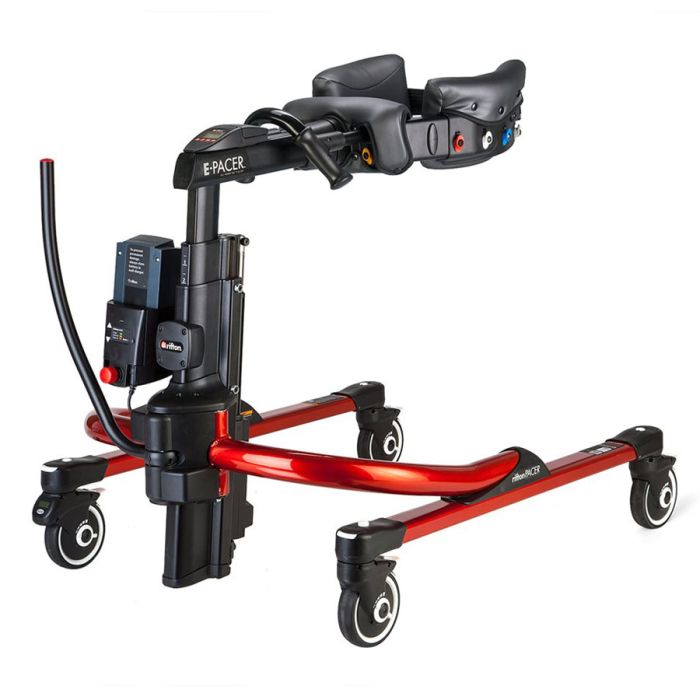

Rifton E-Pacer Gait Trainer
- The Gait Trainer that Lifts.
- Solution for clients who have grown too large or too dependent to be safely transferred into manual gait trainers.
Rifton E-Pacer
The Rifton E-Pacer is an exciting new addition to the Pacer family and can be a life-changing solution for clients who have grown too large or too dependent to be safely transferred into manual gait trainers.
The E-Pacer sit-to-stand lift functionality removes a major barrier to gait training with large or highly dependent clients. It combines the powerful electric lift column and secure body support of Rifton's TRAM with the key gait training feature of the classic Pacer, with a range of key features:
Effortless Adjustments
The lift column adjusts from 83cm to 150cm. The legs expand to fit around large wheelchairs.
Gait Tracker

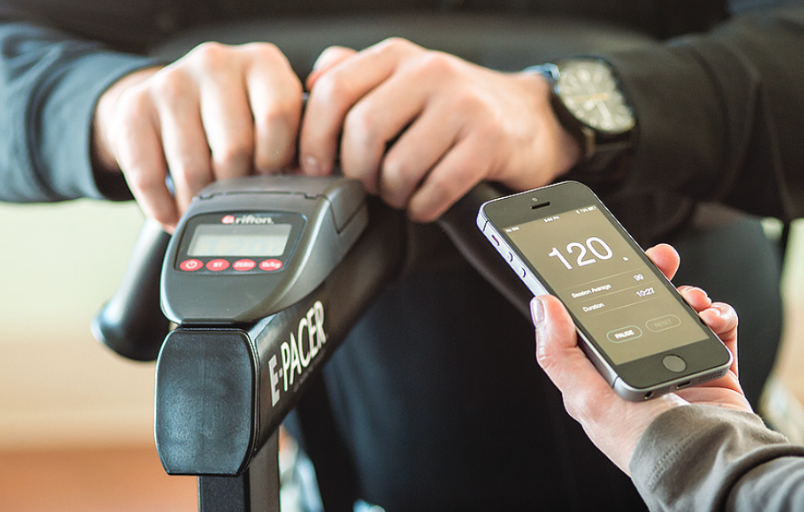

The E-Pacer scale connects with a phone or tablet via bluetooth to display scale data on Rifton's Gait Tracker App.
Accomodates larger users
The Rifton E-Pacer is the largest member of the Pacer family. It's strong and stable frame accomodates users up to 6"5 and 158 kg.
Key Features:
- Zero-lift transfers: The E-Pacer can perform the sit-to-stand transfer that is part of every gait training session with no lifting on the part of the caregiver.
- Gait training with extra stability: The E-Pacer’s strong and rigid frame gives security for heavier or taller clients.
- Seat-to-seat transfers: Attach the thigh straps to the E-Pacer’s body support system and use the E-Pacer to move a client from a wheelchair to a mat table or other surface for therapy.

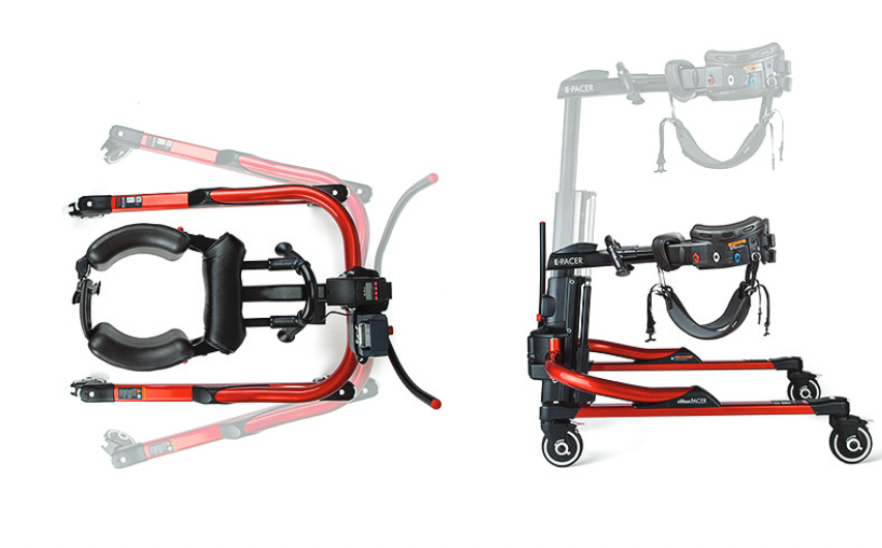

- Expandable legs: Widen the base legs for clients needing extra step width or to get up close to a wheelchair prior to a transfer.
- Height range: The 26" adjustment range of the E-Pacer’s electric lift column provides great versatility for use with clients of different statures.
- Built-in scale: the optional Bluetooth-equipped scale and Gait Tracker mobile app measure the load on the body support, allowing caregivers to track a client’s weight-bearing progress over time. Available for Android or iOS devices.
|
Rifton E-Pacer |
|
|
Overall length |
113.7 cm |
|
Overall width |
80 to 131.5 cm |
|
Overall height |
83.2 to 149.9 cm |
|
Turning diameter |
127 cm |
|
Furniture clearance (floor to top of base leg) |
22.2 cm |
|
Minimum user armpit height (standing/ambulating) |
80 cm |
|
Maximum user height (standing/ambulating) |
195.6 cm |
|
Maximum working load |
158.8 kg |
|
E-Pacer weight |
32.7 kg |
|
Lifting speed |
3.8 cm/sec (no load) |
|
Batteries |
24V, 2.9 Ah valve-regulated lead-acid gel-type |
|
Battery charger |
Wall-mounted, 100–240V AC, max 650 mA |
|
Motor |
24V, 6A permanent magnet |
|
Emergency lowering |
Electrical |
|
Wheels |
Front: 10 cm dual with brake / Rear: 10 cm dual |
|
Motor duty cycle |
2 minutes continuous use / 18 minutes idle |
Rifton E-Pacer Gait Trainer
-
The scale, when paired with a tablet or phone via Bluetooth, enables the Gait Tracker App to monitor clients' weight-bearing progress, compatible with both Android and iOS devices. This integration provides valuable insights into mobility advancements, facilitating comprehensive tracking and analysis of gait training programs. Accessible real-time data through the app enhances assessment and optimization of clients' mobility journeys.
$2,598.00 -
The optional odometer offers convenient distance measurement and versatile functionality. Easily reset the display to 0 or view the total lifetime distance traveled, with units displayed in either kilometers or thousands of feet based on preference. Switching between feet and meters is straightforward, enhancing user flexibility and convenience.
$380.00 -
The switch pole offers caregivers the convenience of operating the electric lift without needing to bend down, particularly useful when not using the front handle. Additionally, it can be reversed to allow the client to control the lift, providing greater independence and autonomy during transfers. This versatile feature enhances the usability of the electric lift, catering to both caregiver and client needs.
$480.00 -
Thigh straps are utilized for seated transfers, offering options of narrow (5") or wide (7") depending on client needs. Additional straps can be obtained for individual clients, all made of water-resistant nylon for durability. Featuring quick attachment to the TRAM's color-coded clips, these straps ensure efficient and secure transfer processes.
$333.00 -
Thigh straps are utilized for seated transfers, offering options of narrow (5") or wide (7") depending on client needs. Additional straps can be obtained for individual clients, all made of water-resistant nylon for durability. Featuring quick attachment to the TRAM's color-coded clips, these straps ensure efficient and secure transfer processes.
$333.00 -
Introducing our arm prompts, designed to provide lifting support and security for clients with low tone or requiring arm stabilization during transfers. These prompts offer adjustable positioning in every direction and angle, ensuring versatility to accommodate diverse needs. Enhance comfort and stability with our customizable arm prompts, tailored to meet individual requirements effectively.
$1,159.00 -
Introducing our arm prompts, designed to provide lifting support and security for clients with low tone or requiring arm stabilization during transfers. These prompts offer adjustable positioning in every direction and angle, ensuring versatility to accommodate diverse needs. Enhance comfort and stability with our customizable arm prompts, tailored to meet individual requirements effectively.
$1,014.00 -
Our pelvic support, available in three sizes, aids in sit-to-stand transfers and supported ambulation, enhancing patient mobility. Easily attachable via color-coded clips, with optional strap crossing for optimal fit, it streamlines setup and usage. Additionally, it transforms the TRAM into a valuable tool for early ICU mobility and post-stroke physical therapy.
$615.00 -
Our pelvic support, available in three sizes, aids in sit-to-stand transfers and supported ambulation, enhancing patient mobility. Easily attachable via color-coded clips, with optional strap crossing for optimal fit, it streamlines setup and usage. Additionally, it transforms the TRAM into a valuable tool for early ICU mobility and post-stroke physical therapy.
$582.00 -
Our pelvic support, available in three sizes, aids in sit-to-stand transfers and supported ambulation, enhancing patient mobility. Easily attachable via color-coded clips, with optional strap crossing for optimal fit, it streamlines setup and usage. Additionally, it transforms the TRAM into a valuable tool for early ICU mobility and post-stroke physical therapy.
$518.00 -
Introducing our hip positioner, meticulously designed to optimize positioning for gait training sessions. This innovative device enables natural pelvic movement, encourages lower extremity weight-shifting, and ensures proper abduction for effective training. Enhance comfort during use with the optional hip positioner pad, providing additional cushioning for a more comfortable experience.
$699.00 -
Introducing our hip positioner, meticulously designed to optimize positioning for gait training sessions. This innovative device enables natural pelvic movement, encourages lower extremity weight-shifting, and ensures proper abduction for effective training. Enhance comfort during use with the optional hip positioner pad, providing additional cushioning for a more comfortable experience.
$635.00 -
In settings requiring frequent transfers throughout the day, an additional battery may be necessary to ensure continuous operation. A fully charged battery typically provides approximately 70 complete lift cycles, with performance varying based on user weight.
$346.00 -
Arm platforms provide a straightforward alternative for clients requiring minimal arm positioning, attaching easily to our adjustable arm prompt base. Constructed of integral skin foam, they offer padded comfort and effortless cleaning. Additionally, arm platforms are available with or without handgrips, catering to individual preferences and needs for a customized experience.
$100.00
