Rifton HTS Hygiene Toileting System
Prices displayed are minimum configurations*

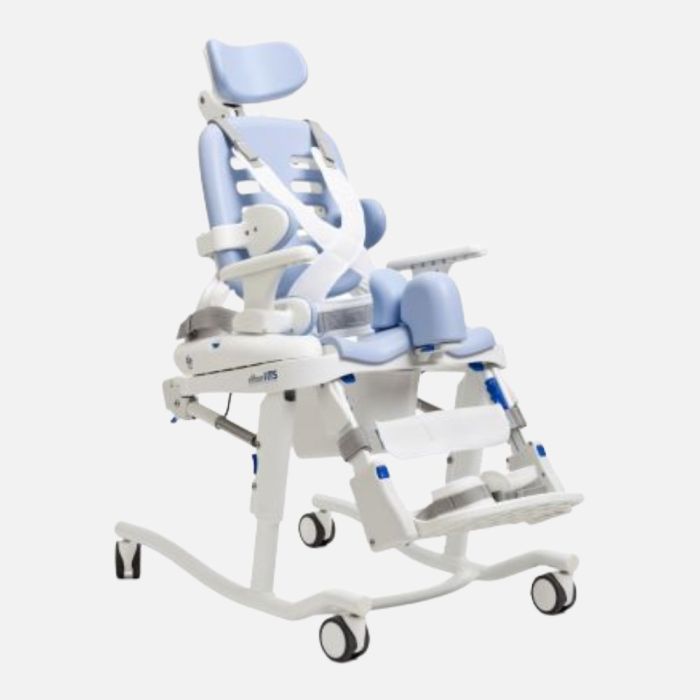

Rifton HTS Hygiene & Toileting System
The Rifton HTS is a versatile hygiene and toileting system designed to support good health and effective toileting. Whether used on, over, or off the toilet, it promotes proper positioning and is easy for caregivers to use, with no tools required.
Highlights:
- Available in three sizes, suitable for users of varying heights and weights, with growth potential to ensure long-term use.
- Optional gas-assisted tilt-in-space feature allows for a forward tilt of 5˚ and back tilt of up to 25˚, providing comfort during transfers and showering.
- Tool-free adjustments for quick and easy assembly, disassembly, and customisation.
- Can be used in various settings: on the toilet, over the toilet with a mobile or stationary base, or off the toilet with a commode pan.
- Swing-away laterals and thicker hip guides allow for easier transfers and better support.
- Optional dynamic deflector for medium and large sizes to ensure dignity and effective hygiene maintenance.
Better Mobility

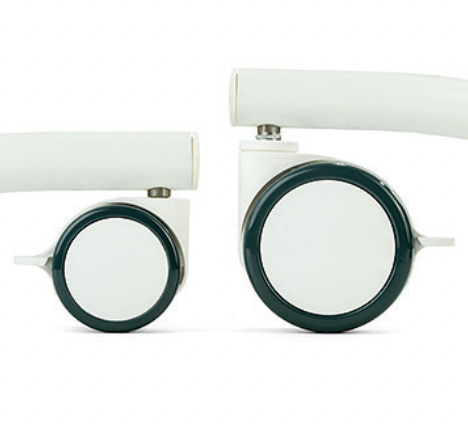

The large caster option improves mobility and has better resistance to picking up debris.
Foam Moulded Cushions
Foam pads on the back and seat provide comfort for your clients and easy cleaning for caregivers
Accessible for Clients

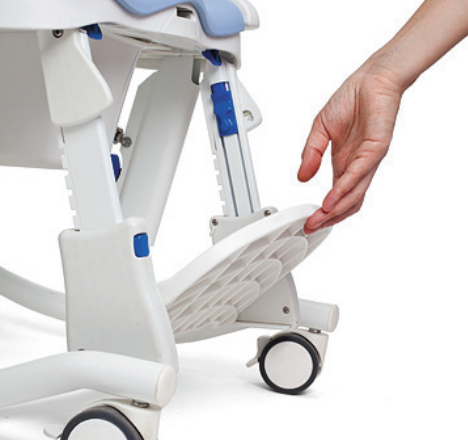

A flip-up footboard makessit-to-stand transitions easy.
Features:
- Dynamic Deflector: Provides enhanced hygiene and protection during toileting, available in medium and large sizes.
- Softer Seat Pad: Increases comfort for larger users, available in large size.
- Expanded Footboard Angle Adjustment: Offers increased flexibility and comfort for users.
- Improved Pan Attachment: Easy-to-remove pan for hassle-free cleaning.
- Portable Option: With an optional portability kit, it can be used on-the-go, ensuring users maintain their toileting routine while travelling.
- Shower-Ready: The HTS doubles as a mobile shower chair, eliminating the need for separate equipment.
The Rifton HTS is a cost-effective, adaptable, and easy-to-use solution for toileting and hygiene needs, designed to meet a wide range of user requirements and simplify caregiving tasks.
Contact us or get a quote to purchase this item.
| Specification | Small | Medium | Large |
|---|---|---|---|
| Mobile base footprint | 21 x 27 in | 21 x 27 in | 23.5 x 33 in |
| Base length at full recline | 43 in | 49.5 in | 57.25 in |
| Non-tilt base footprint | 20 x 25 in | 20 x 25 in | 23.5 x 29 in |
| Hole size in seat pad (Open) | 4 x 9 in | 4.5 x 12 in | 6 x 14 in |
| Hole size in seat pad (Closed) | 3 x 8 in | 3.5 x 10 in | 4.5 x 12 in |
| Seat front to footboard height | 8.5 to 13.5 in | 10.5 to 15.5 in | 11.25 to 17.5 in |
| Seat front to floor with mobile tilt frame | 15.5 to 21.5 in | 15.5 to 21.5 in | 17.5 to 23 in |
| Seat front to floor with mobile non-tilt frame | 16 to 20 in | 17 to 20.5 in | 18 to 22 in |
| Seat front to floor with stationary non-tilt frame | 13 to 17 in | 14 to 17.5 in | 15 to 19 in |
| Seat depth (1" increments) | 8, 9, 10, 11 in | 11.5, 12.5, 13.5, 14.5 in | 14.5, 15.5, 16.5, 17.5 in |
| Seat width | 12 in | 14 in | 17 in |
| Armrest height above seat | 5.25 in | 6.5 in | 8 in |
| Backrest height above seat | 16.5 in | 19.5 in | 24.5 in |
| Backrest width | 11.5 in | 13.5 in | 16 in |
| Tilt (Forward/Back) | 5°/25° | 5°/25° | 5°/25° |
| Backrest angle adjustments | 6° fwd, 6° and 18° back | 6° fwd, 6° and 18° back | 6° fwd, 6° and 18° back |
| Frame weight | 15 lbs | 27.5 lbs | 45 lbs |
| Maximum clearance to the floor | 19 in | 19 in | 20 in |
| Maximum weight capacity | 75 lbs | 150 lbs | 250 lbs |
| Distance between laterals | 4.75 to 12 in | 6.75 to 14.5 in | 10.5 to 18 in |
| Footboard angle adjustment | 10°, 20°, 30° fwd, 10° back | 10°, 20°, 30° fwd, 10° back | 10°, 20°, 30° fwd, 10° back |
| Maximum clearance height under seat | Tilt: 20.5 in, Stationary: 15 in, Mobile: 18 in | Tilt: 20.5 in, Stationary: 15 in, Mobile: 18 in | Tilt: 20.75 in, Stationary: 16.5 in, Mobile: 19.5 in |
| Portability base clearance | 18.5 in | 18.5 in | N/A |
| Portability kit carry bag dimensions | 19.5 x 21.25 x 10 in | 19.5 x 21.25 x 10 in | N/A |
| Bottom of frame to floor (mobile tilt base) | 2 in | 2 in | 2 in |
| Tub base footprint | 23 x 16.5 in (feet) / 19 in (top) | 23 x 16.5 in (feet) / 19 in (top) | N/A |
| Tub base height | 11 in front / 9.5 in back | 11 in front / 9.5 in back | N/A |
Rifton HTS Hygiene Toileting System
-
The butterfly harness provides maximum anterior support, security and freedom of movement for clients who have limited trunk control while sitting.
-
Independently adjustable laterals secure clients with limited trunk control.
-
-
-
-
-
-
-
The large casters on the knee walker enhance mobility by effortlessly clearing higher thresholds or obstacles, offering added versatility during use. Additionally, they increase the height from the floor by approximately 1", ensuring smooth navigation over various surfaces with ease.
-

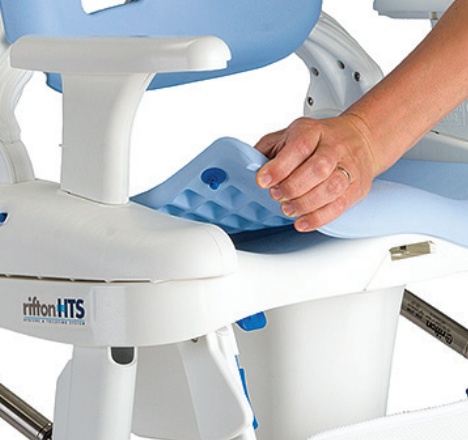

The soft seat pad is meticulously designed to provide optimal comfort and support, featuring egg crate geometry underneath and gentle contours on top to alleviate pressure points. Its larger hole ensures easy access for hygiene maintenance, while the tough, waterproof closed-cell foam construction ensures durability and easy cleaning. Additionally, the unique design of the seat pad opening, open to the rear, facilitates caregiver access for cleaning tasks. Optional configurations include a closed seat back and narrower hole for users needing extra support, as well as a no-hole seat pad with a rigid hole filler available for medium and large HTS sizes, catering to diverse user needs and preferences.
-
The soft seat pad is meticulously designed to provide optimal comfort and support, featuring egg crate geometry underneath and gentle contours on top to alleviate pressure points. Its larger hole ensures easy access for hygiene maintenance, while the tough, waterproof closed-cell foam construction ensures durability and easy cleaning. Additionally, the unique design of the seat pad opening, open to the rear, facilitates caregiver access for cleaning tasks. Optional configurations include a closed seat back and narrower hole for users needing extra support, as well as a no-hole seat pad with a rigid hole filler available for medium and large HTS sizes, catering to diverse user needs and preferences.
-
The soft seat pad is meticulously designed to provide optimal comfort and support, featuring egg crate geometry underneath and gentle contours on top to alleviate pressure points. Its larger hole ensures easy access for hygiene maintenance, while the tough, waterproof closed-cell foam construction ensures durability and easy cleaning. Additionally, the unique design of the seat pad opening, open to the rear, facilitates caregiver access for cleaning tasks. Optional configurations include a closed seat back and narrower hole for users needing extra support, as well as a no-hole seat pad with a rigid hole filler available for medium and large HTS sizes, catering to diverse user needs and preferences.
-
-
The High-Threat Security Chair's pan is designed for off-toilet functionality, featuring a generous capacity to accommodate user needs. Constructed from durable plastic with a pour spout, it ensures simple cleanup and attaches securely to the HTS by sliding in from the back, offering convenience and stability during use.
-
The bowl adapter is a convenient accessory designed to ensure precise alignment of high-tech toilet seats (HTS) over various toilet configurations. By inserting it at the front edge under the seat pad, the adapter bridges any gaps, ensuring a secure fit over wall-hung toilets and accommodating large HTS models for round-front toilets. Its versatile design enhances user comfort and stability, optimizing the functionality of modern bathroom fixtures.
-
The dynamic deflector is an essential toileting accessory designed to provide top-notch containment and comfort. Utilizing standard abductor mounting, it features soft, flexible foam that conforms to the user's movements, ensuring cleanliness and dryness throughout. With a comfortable splash guard made of soft plastic, it offers added security for caregivers and clients alike during urination, making it a reliable and indispensable tool for maintaining hygiene.
-
The dynamic deflector is an essential toileting accessory designed to provide top-notch containment and comfort. Utilizing standard abductor mounting, it features soft, flexible foam that conforms to the user's movements, ensuring cleanliness and dryness throughout. With a comfortable splash guard made of soft plastic, it offers added security for caregivers and clients alike during urination, making it a reliable and indispensable tool for maintaining hygiene.
