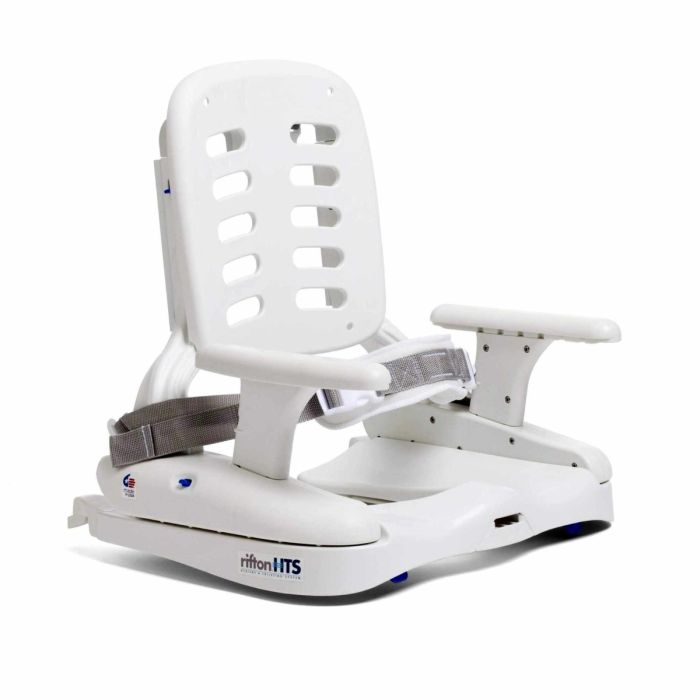

Rifton HTS Seat and Back - Small
Time and again, research has shown the necessity of good toileting for children’s health.
So we designed the HTS with that in mind.
Hygienic, simple and affordable, the HTS promotes the positioning that is ideal and natural for effective toileting. Meanwhile its versatility and simplicity – usable on, over and off the toilet, no tools required – make the lives of caregivers better too.
Simpler for you.
Time and again, research has shown the necessity of good toileting for children’s health.
So we designed the HTS with that in mind. Hygienic, simple and affordable, the HTS promotes the positioning that is ideal and natural for effective toileting.
Meanwhile its versatility and simplicity – usable on, over and off the toilet, no tools required – make the lives of caregivers better too.
Benefits
- The unique design of the optional seat pad opening – open to the rear for larger clients – facilitates clear access for cleaning and hygiene.
- The portability kit provides clients with greater independence – and their families greater freedom to travel.
- Optional molded foam pads for the back and seat provide comfort for clients and easy disinfecting for caregivers.
- Optional gas-assisted tilt-in-space enables the HTS to tilt 5˚ forward for easier transfer and better toileting position, as well as 25˚ back for showering and hair washing.
- On. Over. Off. No matter what your toileting situation or special need, the HTS can meet it with its unmatched versatility:
It is usable:
- ON the toilet, attached with mounting bars
- OVER the toilet, attached to a mobile or stationary economy base
- OFF the toilet with a mobile or stationary base and commode pan
| Small | Medium | Large | |
|---|---|---|---|
| Overall Height | 76 - 117cms | 106 - 142cms | 127 - 188cms |
| Overall Width | 54cm | 54cm | 60cm |
| Seat (front) to footboard height* | 20 – 33cms | 25 – 38cms | 33 – 46cms |
| Seat (front) to floor; mobile tilt frame | 38 – 55cms | 38 – 55cms | 43 – 57cms |
| Seat (front) to floor; mobile non-tilt frame | 39 – 51cms | 39 – 51cms | 46 – 56cms |
| Seat (front) to floor; stationary non-tilt frame | 32 – 43cms | 32 – 43cms | 38 – 48cms |
| Seat Depth | 20/23/25/28cm | 29/32/34/37 | 37/39/42/44cm |
| Seat Width | 20/25/30cm | 25/30/36cm | 33/38/4cm |
| Armrest Height | 14.5cm | 18cm | 22cm |
| Backrest Height above seat | 42cm | 50cm | 62cm |
| Backrest Width | 29cm | 34cm | 41cm |
| Tilt in space FORWARD | 5° | 5° | 5° |
| Tilt in space BACK | 25° | 25° | 25° |
| Backrest angle adjustment | 6° fwd, 6° and 18° back | 6° fwd, 6° and 18° back | 6° fwd, 6° and 18° back |
| Frame Weight – kg | 7kg | 13kg | 20kg |
| Max. clear height under seat (tilt frame) | 48cm | 48 | 51cm |
| Max. working load –kg | 34kg | 68kg | 113kg |
